Transmitter Parameter |
Power Supply | DC 24v |
RF Power Output | 15mA-60mA |
| S/N Ratio | >70dBA |
| Frequency Response | 100Hz-12KHz |
Type | Condenser |
polar pattern | Cardioid |
Features
GMS-5200 series is designed for simpleconference room. Itis a
highly stable conference system with easy operation
. The host machine has a front USB recording port, you can use a USB
flash drive to record the entire meeting process .
. Up to 100 units can be connected to onesystem, maximum 12 chairman
units.
It can be expanded to 250 units withexpanding device.
. With speaking mode as FIFO,LIFO, voicecontrol, chairman mode, all
on mode.
. The system supports hot swap operations. you can reduce or add
microphone units
. Camera tracking function, maximum 6 cameras can be connected via
video switch device
. Support central controller, Support unit hot-plug connection, Quick
& portable installation
. Hyper-cardioid directional condensercapsule,1500px speaking
distance, Free from interference of cellphone
Detachable design for mic tube & micbase
. Intelligent digital design control circuit, low power consumption.
. High-fidelity unidirectional condenser microphone core, sound
reproduction, high clarity and low noise.
. The delegate unit has the function of applying for speaking, and
the order of the meeting is orderly and not chaotic.
. Excellent anti-interference ability from mobile phones.
. With internal magnetic high-fidelity speaker, it will automatically
mute when the microphone is turned on,
and it is not easy to produce howling.
. The left side is designed with 2 3.5 audio output and input
interfaces, and the access device can replace the conference
microphone to speak and listen to the content of other non-voting
conference speeches.
. The conference unit supports hot-swappable function, comes with a
2.1-meter 8P cable, hand-in-hand connection mode,
easy installation and flexible operation.
. Metal base, durable, beautiful and fashionable, not fading or
deforming.
GMS-5200 Rear Panel
[1]. Power Socket
[2]. Rs-232 camera interface
[3]. 485 Type model port
[4]. 232 Central control receiving code interface
[5]. Video switcher interface
[6]. 232 Central control sending code interface
[7]. Router Interface
[8]. U disk recording
[9]. Connect USB port of computer
[10]. Balanced output interface
[11]. Auxiliary audio interface
[12]. Microphone unit interface
[13]. digital cascade ports

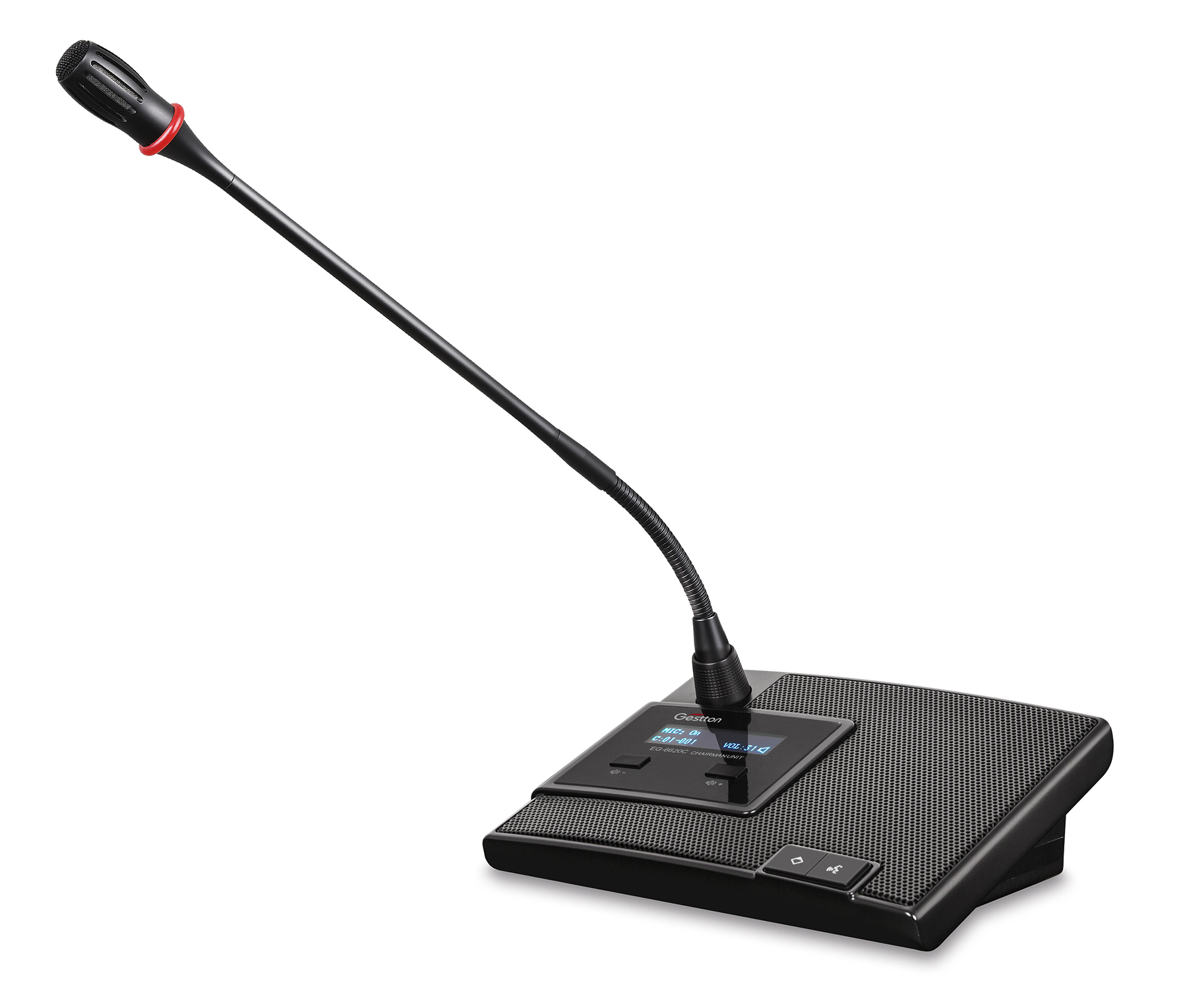

Microphone unit
. With detachable design for the MIC tube and MICbase. Random
connection the microphone unit
. Adopt hyper cardioid-directional condensermicrophone, which can
carry out high quality pick up.
. With LCD display. It can display signal, batteryPower ,ON/OFF, ID
relevant key indication.
. With priority button for chairman unit,With red ring indicator
shows the active unit, With hyper-cardioid directional capsule.
. Free from interference of mobile. LCD display , Detachable mic tube
Application
Ideally suitable for small scale boardrooms and meeting rooms,
Large Meeting Room, Large lecture seminar.
