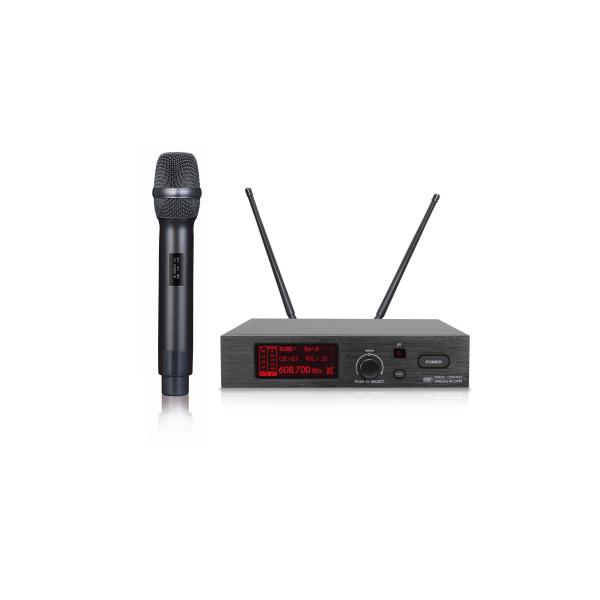

Single Channel True Diversity Wireless Microphone System Channel
UHF Professional Wireless Microphone System Mic
Receiver Parameter
| Main Frame Size | EIA-Standard 19" 1/2U |
| Channels | Single Channel |
| Frequency Stability | ±0.005%, Phase Lock Loop frequency control |
| Carrier Frequency Range | UHF 510-937 MHz ( country dependent ) |
| Preset Channels | 32 preset channels |
| Operating Range | 90M typical ( in open space) |
| Oscillation | PLL synthesized |
| Sensitivity | 6dBμV, S/N>60dB at 25 deviation |
| Band Width | 30MHz |
| Max. Deviation Range | ±45KHz |
| S/N | ＞105dB |
| T.H.D. | ＜0.7% @ 1KHz |
| Frequency response | 45Hz～18KHz±1dB |
| Squelch | “PiloTone & NoiseLock” dual-squelch circuit |
| Power Supply | DC-12V/1A |
| Weight | 720G |
| Dimension | 212(W) X 44(H) X 202(D) (mm) |
| Output Connector | XLR balanced & 6.3φ phone jack unbalanced |
Transmitter Parameter (Handheld)
| Carrier Frequency Range | UHF 510-937 MHz ( country dependent ) |
| Oscillation | PLL synthesized |
| Harmonic radiation | ＜-63dBm |
| Bandwidth | 120MHz |
| Max. Deviation Range | ±45KHz |
| Input Connector | 4-pin mini-XLR connector |
| RF Power Output | 3～30mW ( country dependent ) |
| Battery | AA X 1 alkaline |
| Current Consumption | 60mA, typical |
| Battery Current / Life | Min. 5 hours |
| Dimension | 72(H) X 68(W) X 21(D) (mm) |
| Weight | 71g ( w/o battery) |
Receiver Features
· Rugged metal chassis with soft-touch controls.
· Advanced diversity technology maintains dependable wireless
signal quality.
· Pilot tone squelch for eliminating RF interference when
transmitter is turned off.
· Enhanced AF frequency range
· Built-in spectrum analyzer to scan and display interference
frequency clearly.
· Transmitter Sync.
· 300 selectable frequencies across 30MHz bandwidth.
· OLED display screen delivers a bright, clear viewing in day/night
environments.
· Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
· Offers an exceptional value in both performance and price, for
both working musicians and sound installers
Transmitter Features
· Rugged, ergonomically designed housing.
· 120MHz ultra-wide bandwidth.
· Equipped with 4 pin mini XLR connector.
· Infrared automatic transmitter sync.
· Very easy and quick to use thanks to OLED display
· 1 x AA batteries – up to 5 hours continue use.
Products Supply Scope
. Handheld system: 1* AM 100 receiver + 2* AH 100 handheld
microphones
. Lavalier system: 1* AM 100 receiver + 2* AP 100 bodypack
transmitters with lavalier microphone
. Headset system: 1* AM 100 receiver + 2* AP 100 bodypack
transmitters with headset microphone
. 1 power supply unit
. 2 antennas
. 1 ¼” (6.3 mm) audio connecting cable
. 4 AA size batteries ( handheld system ) / 2 AA size batteries (
lavalier / headset system )
. Operating instructions.
Application
Suitable for Large-scale performances ,small and medium-sized
performances, outdoor singing and speeches, KTV boxes, classrooms,
gymnasiums, offices and government agencies
