Conference Systems Audio Video Equipment Desktop Confer Audio Wired Audio Conference System with Video HD Zoom Meeting

Features

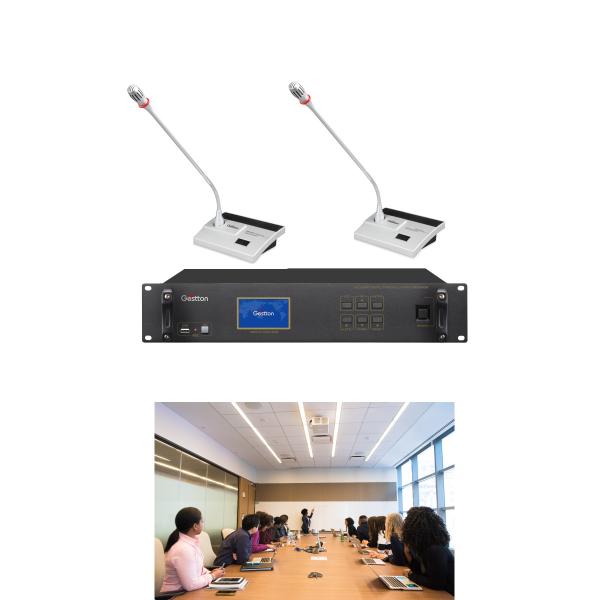

GMS-5100 series is designed for simpleconference room. Itis a highly stable conference system with easy operation

. Up to 100 units can be connected to onesystem, maximum 12 chairman units. It can be expanded to 250 units withexpanding device.

. With speaking mode as FIFO,LIFO, voicecontrol, chairman mode, all on mode.

. Support central controller, Support unit hot-plug connection, Quick & portable installation

. Hyper-cardioid directional condensercapsule,1500px speaking distance, Free from interference of cellphone

Detachable design for mic tube & micbase

. Intelligent digital design control circuit, low power consumption.
. Touch the induction button to make the unit panel more integrated.
. High-fidelity unidirectional condenser microphone core, sound reproduction, high clarity and low noise.
. The delegate unit has the function of applying for speaking, and the order of the meeting is orderly and not chaotic.
. Excellent anti-interference ability from mobile phones.
. With internal magnetic high-fidelity speaker, it will automatically mute when the microphone is turned on,

and it is not easy to produce howling.
. The left side is designed with 2 3.5 audio output and input interfaces, and the access device can replace the conference
microphone to speak and listen to the content of other non-voting conference speeches.
. The conference unit supports hot-swappable function, comes with a 2.1-meter 8P cable, hand-in-hand connection mode,

easy installation and flexible operation.
. Metal base, durable, beautiful and fashionable, not fading or deforming.

Transmitter Parameter (Three styles are available)
Power Supply	DC 24v
RF Power Output	15mA-60mA
S/N Ratio	>75dBA
Frequency Response	100Hz-12KHz
Type	Condenser
polar pattern	Cardioid

GMS-5100 Rear Panel

[1]. Power Socket

[2]. 6.3mm Earphone Jack

[3]. 6.3mm Audio Input

[4]. XLR Output

[5]. Aux RCA jacks

[6]. RS-232 Port for Central Controller

[7]. RS-232 Port for PC

[8] Microphone Unit Port

---

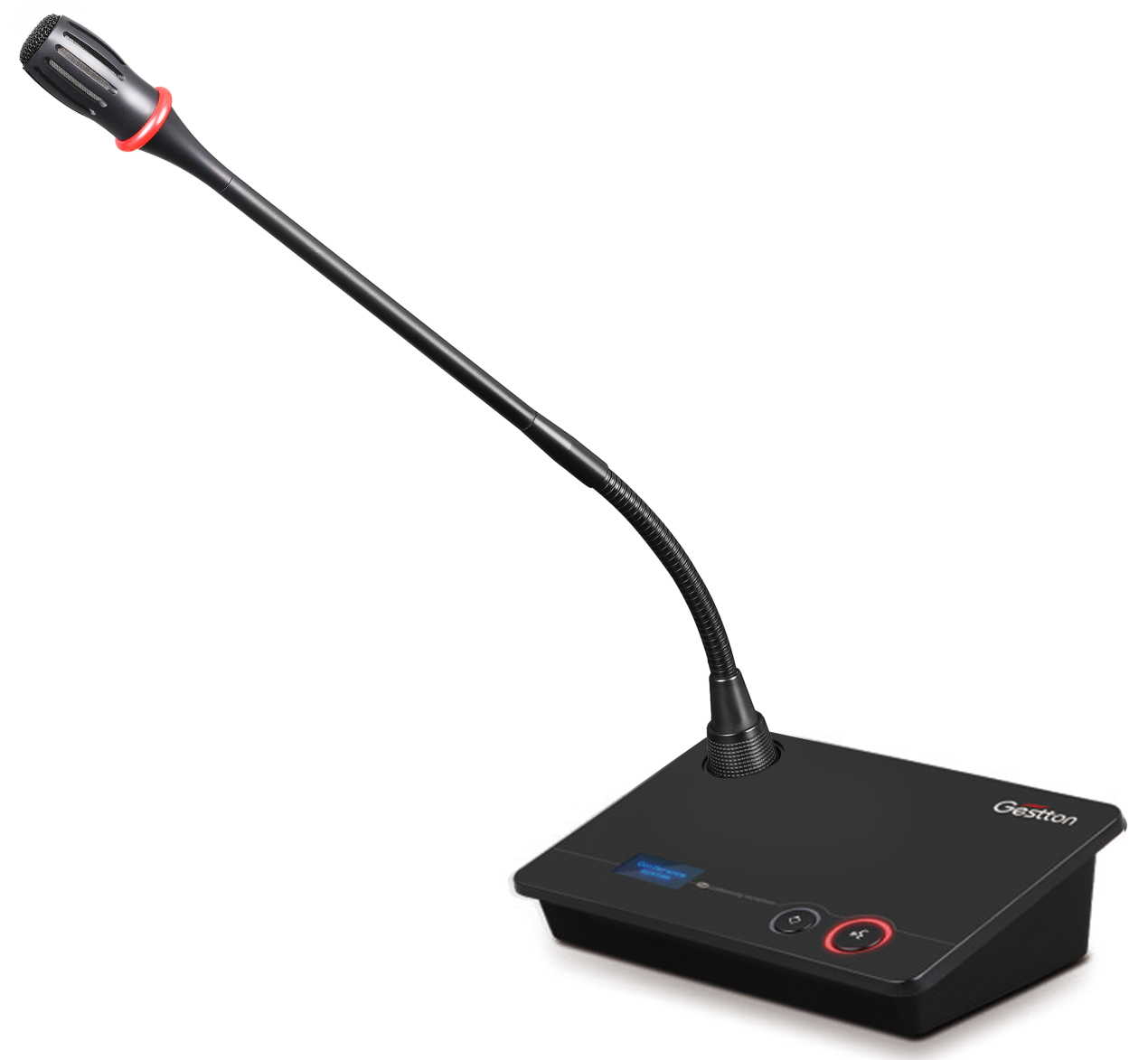

Microphone unit

. With detachable design for the MIC tube and MICbase.

. Adopt hyper cardioid-directional condensermicrophone, which can carry out high quality pick up.

. With LCD display. It can display signal, batteryPower ,ON/OFF, ID relevant key indication.

. With priority button for chairman unit,With red ring indicator shows the active unit, With hyper-cardioid directional capsule.

. Free from interference of mobile.

. LCD display , Detachable mic tube

Application

---

Ideally suitable for small scale boardrooms and meeting rooms, Large Meeting Room, Large lecture seminar.

OUR FACTORY

Welcome to our company ,a one-stop solution for your Microphone business

---

The big question that every manufacturer of USB mics is forced to tackle is whether to use DSP or not. While Blue's USB microphone lineup, as well as Sennheiser's MK 4 Digital, are free of DSP, the Shure MV51 uses digital signal processing as a selling point. There are four preset DSP modes (Speech, Singing, Acoustic Instrument, and Loud) that auto-adjust gain, EQ, and dynamic compression/limiting. The key here is that there's also a Flat mode that bypasses any EQ or dynamic compression. Thus far, it's the only mic we've tested to offer multiple DSP settings, and a DSP-free setting, but there are other mics that offer multiple mic patterns—the MV51's is fixed to cardioid, which is the typical pattern for USB mics.

The founder team of Gestton enterprise entered the audio and video industry in 1994. Up to now, it has been 27 years of technology precipitation, witnessing and promoting the development of China's audio and video industry.

From professional audio, conference system to personal audio, gestton continues to expand its product line. At present, it has fully covered the R & D, production and sales of products. Over the past 27 years, we have made continuous innovation in audio product technology, won high praise from many customers, and established cooperative relations with many well-known companies at home and abroad.

Gestton group has four production bases in Jiangmen City, with an industrial park area of more than 40000 square meters. It has obtained 3C, CE and ISO9001 certification, and has established R & D centers and sales platforms in Guangzhou and Shenzhen. The company has core technical strength and professional technicians. At present, the team has hundreds of people.

Gestton products are exported to dozens of countries overseas, with an annual output value of tens of millions. It is a well-known audio brand at home and abroad. Stable performance, reliable technical support, fast delivery and efficient after-sales service are our constant commitments to customers.
